Daikin 12.5kW Slimline Ducted System Three Phase - Compact Whole-Home Comfort
The Daikin FBA125BVMA Slimline ducted system is a powerful 12.5kW three-phase air conditioning solution designed for whole-home climate control in very large homes with limited roof space. Featuring Daikin's industry-leading slim-line design, advanced inverter technology, and premium features, this ducted system delivers exceptional year-round comfort with superior energy efficiency.
Key Features:
-

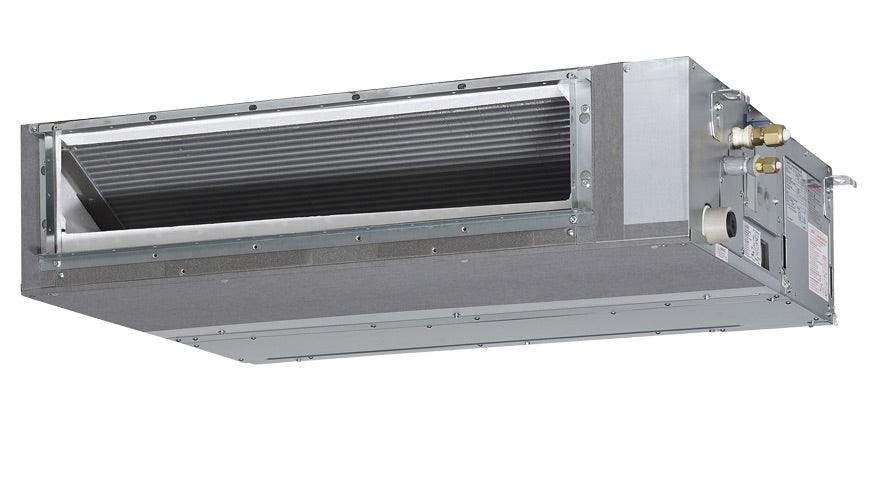

Slim-Line Indoor Unit: Industry-leading low profile design of 245mm height ensures clearance in most narrow roof spaces
-
Whole-Home Comfort: 12.5kW capacity perfect for very large homes and extensive multi-room applications
-
Design Flexibility: DC fan with 150Pa static pressure and up to 75m of available pipe run to suit your design layout
-
R22 Retrofit Capability: Provides a cost-effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping
-
Automatic Airflow Adjustment: Fan speed adjusts automatically to suit your duct design for optimum airflow distribution
-
Flexible Return Air: Option of rear or bottom suction return allows for greater installation flexibility
-
Built-in Condensate Pump: DC condensate pump equipped as standard with 850mm lift
-
Three Phase Power: Designed for properties with three-phase power supply
-
Reverse Cycle: Both cooling and heating for year-round comfort
-
Daikin Quality: Trusted Japanese engineering and reliability
Technical Specifications:

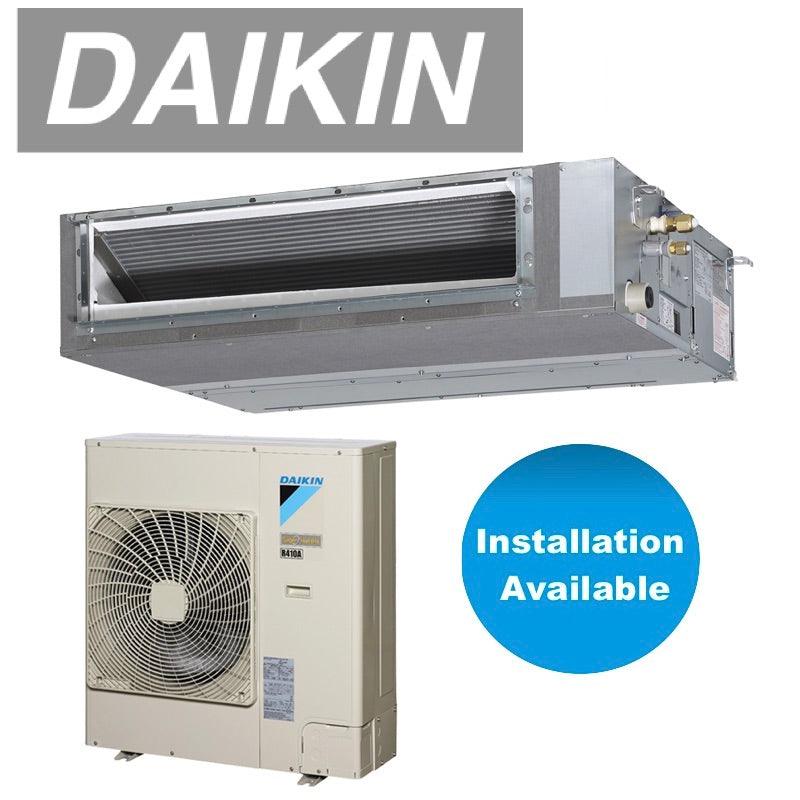

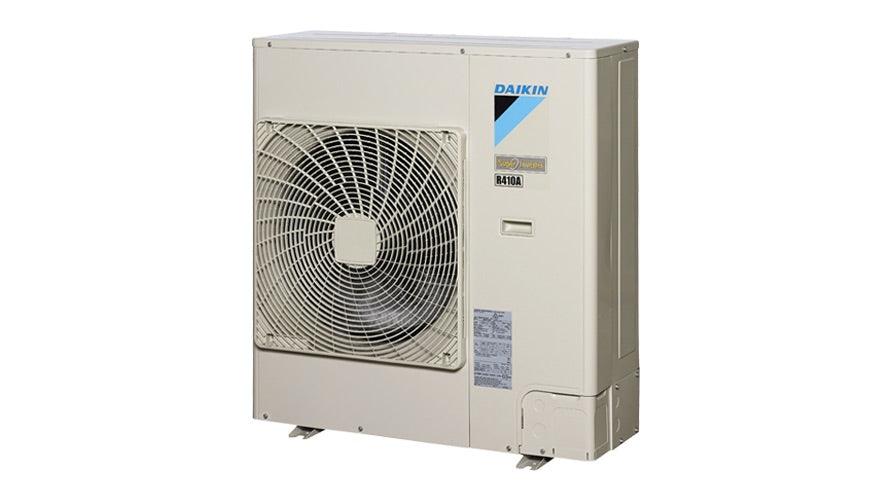

- Model: FBA125BVMA (Indoor) / RZAV125CY1 (Outdoor)
- Cooling Capacity: 12.5kW
- Heating Capacity: 14.0kW
- Indoor Unit Height: 245mm (slim-line design)
- Static Pressure: 150Pa
- SKU: FBA125B-VFV
- Power Supply: Three Phase
- Weight: 140kg
Perfect For:
- Very large homes (5-6 bedrooms)
- Homes with limited roof space
- Properties with three-phase power
- Extensive multi-room climate control
- Renovation projects with space constraints
- R22 system upgrades
Why Choose Daikin Slimline Ducted?
The Slimline ducted series is perfect for homes with limited roof space where traditional ducted systems won't fit. With its ultra-compact 245mm height, advanced DC fan technology, and flexible installation options, this system delivers powerful whole-home comfort without compromising on performance. The built-in condensate pump and automatic airflow adjustment ensure hassle-free operation.
Includes full manufacturer warranty. Professional installation required for optimal performance and warranty compliance.
For more information, visit Daikin Slimline Ducted Systems
