Daikin BRC24TLZ4B AirHub Touch Zone Controller Box (Linear)
Power your multi-zone climate control system with the Daikin BRC24TLZ4B AirHub touch zone controller box with linear control. This specialized control hub manages up to 4 zones with 24V damper motors using linear expansion valve control, working seamlessly with AirHub touchscreen controllers to deliver sophisticated zone management for your Daikin ducted air conditioning system.
Key Features
-
4-zone capacity – Controls up to 4 independent zones
-
Linear control technology – Advanced linear expansion valve control for precise temperature management
-
24V damper motor control – Compatible with 24V motorized zone dampers
-

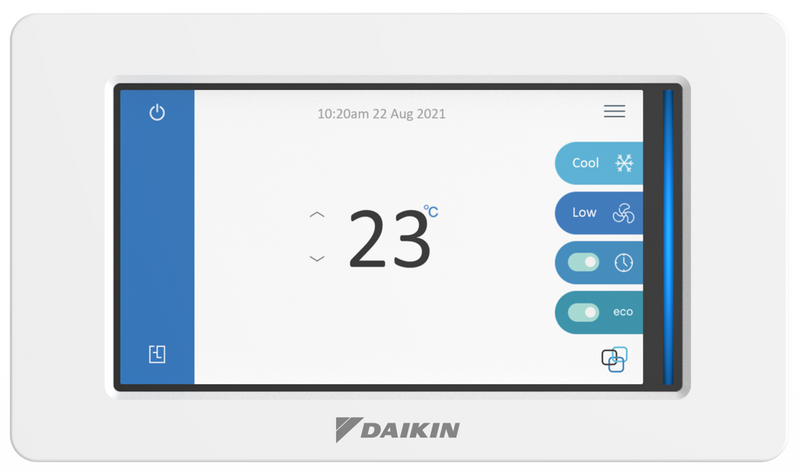

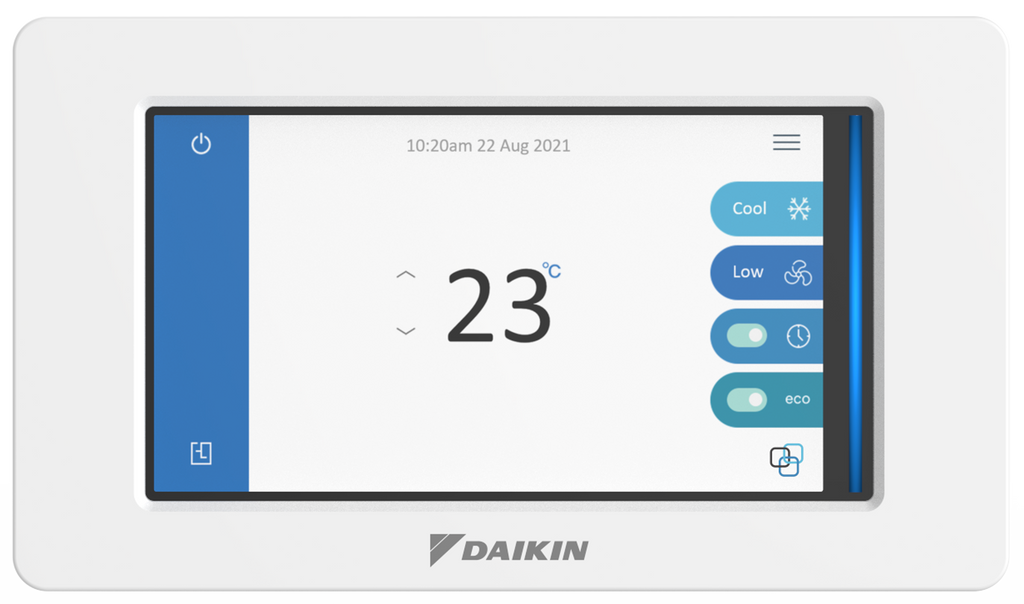

AirHub system integration – Works with BRCMTZCB and BRCSTZCB touchscreen controllers
-
Central control hub – Manages zone dampers and system coordination
-
Compatible models – Designed for FDYA(N) and FDYUA(N) ducted units with linear expansion valves
-
Automated zone management – Opens and closes dampers based on controller commands
-
Enhanced temperature control – Linear technology provides superior zone temperature precision
-
Professional installation – Designed for integration by qualified technicians
-
Reliable operation – Built for long-term performance and stability
-
Genuine Daikin accessory – Engineered specifically for Daikin ducted systems
System Configuration
Important: The BRC24TLZ4B is the control box/hub for AirHub systems with linear expansion valve control. It requires:
- AirHub touchscreen controller(s) - BRCMTZCB main unit and/or BRCSTZCB sub unit(s)
- 24V motorized zone dampers - One per zone (e.g., QZD624V, QZD824V, QZD1024V)
- Compatible Daikin ducted indoor unit - FDYA(N) or FDYUA(N) series with linear expansion valves
Why Choose the BRC24TLZ4B?
The BRC24TLZ4B controller box is the essential brain behind your AirHub multi-zone system for installations with linear expansion valve technology. Linear control provides superior temperature precision and efficiency compared to standard systems, making it ideal for applications where precise zone temperature control is critical. It manages the communication between your touchscreen controllers and zone dampers while coordinating with the linear expansion valve system for optimal performance.
Perfect for residential homes or small commercial installations requiring up to 4 independent zones with enhanced temperature control. The linear technology ensures each zone maintains precise temperatures with minimal temperature fluctuation, providing superior comfort and energy efficiency. Ideal for new installations or upgrades to multi-zone control on compatible Daikin ducted systems with linear expansion valves.
Australian Manufacturer's Warranty – All units come with full warranty coverage for complete peace of mind. Brand new, genuine Daikin product sourced from Australian stock.
Specifications
-
Model: BRC24TLZ4B
-
Type: AirHub touch zone controller box (linear)
-
Zone capacity: Up to 4 zones
-
Control type: Linear expansion valve control
-
Damper voltage: 24V
-
Compatibility: FDYA(N), FDYUA(N) ducted indoor units with linear expansion valves
-
Required controllers: BRCMTZCB main unit and/or BRCSTZCB sub unit(s)
-
Required dampers: 24V motorized zone dampers (one per zone)
-
Installation: Professional installation required
-
Applications: Multi-zone residential and small commercial ducted systems with linear control
