Daikin BRC24TLZ8B AirHub Touch Zone Controller Box (Linear)
Power your comprehensive multi-zone climate control system with the Daikin BRC24TLZ8B AirHub touch zone controller box with linear control. This advanced control hub manages up to 8 zones with 24V damper motors using linear expansion valve control, working seamlessly with AirHub touchscreen controllers to deliver sophisticated zone management with superior temperature precision for larger homes and commercial Daikin ducted air conditioning systems.
Key Features
-
8-zone capacity – Controls up to 8 independent zones
-
Linear control technology – Advanced linear expansion valve control for precise temperature management
-
24V damper motor control – Compatible with 24V motorized zone dampers
-

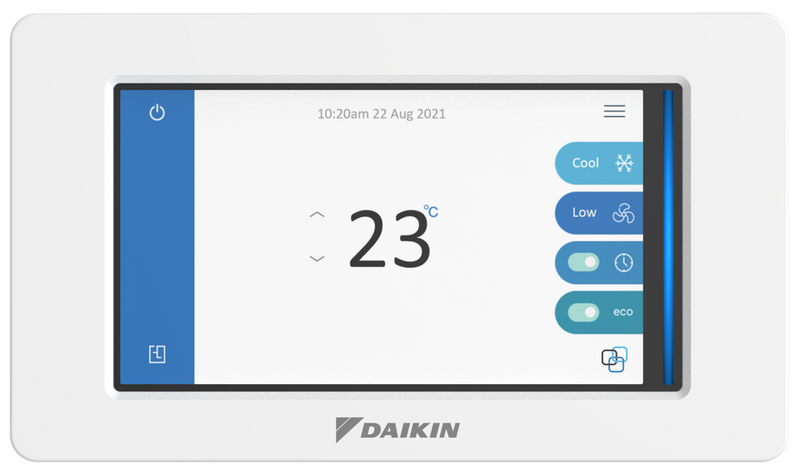

AirHub system integration – Works with BRCMTZCB and BRCSTZCB touchscreen controllers
-
Central control hub – Manages zone dampers and system coordination
-
Compatible models – Designed for FDYA(N) and FDYUA(N) ducted units with linear expansion valves
-
Automated zone management – Opens and closes dampers based on controller commands
-
Enhanced temperature control – Linear technology provides superior zone temperature precision
-
Expanded capacity – Ideal for larger homes and commercial installations
-
Professional installation – Designed for integration by qualified technicians
-
Reliable operation – Built for long-term performance and stability
-
Genuine Daikin accessory – Engineered specifically for Daikin ducted systems
System Configuration
Important: The BRC24TLZ8B is the control box/hub for larger AirHub systems with linear expansion valve control. It requires:
- AirHub touchscreen controller(s) - BRCMTZCB main unit and/or BRCSTZCB sub unit(s)
- 24V motorized zone dampers - One per zone (e.g., QZD624V, QZD824V, QZD1024V, QZD1224V)
- Compatible Daikin ducted indoor unit - FDYA(N) or FDYUA(N) series with linear expansion valves
Why Choose the BRC24TLZ8B?
The BRC24TLZ8B controller box is the essential brain behind your AirHub multi-zone system for larger installations with linear expansion valve technology. Linear control provides superior temperature precision and efficiency compared to standard systems, making it ideal for applications where precise zone temperature control is critical across multiple zones. It manages the communication between your touchscreen controllers and up to 8 zone dampers while coordinating with the linear expansion valve system for optimal performance.
Perfect for larger residential homes, multi-level properties, or commercial installations requiring up to 8 independent zones with enhanced temperature control. The expanded 8-zone capacity combined with linear technology makes it ideal for larger homes with multiple bedrooms, living areas, and offices, or commercial spaces requiring sophisticated zone management with superior temperature precision. Each zone maintains precise temperatures with minimal temperature fluctuation, providing superior comfort and energy efficiency throughout your entire space.
Australian Manufacturer's Warranty – All units come with full warranty coverage for complete peace of mind. Brand new, genuine Daikin product sourced from Australian stock.
Specifications
-
Model: BRC24TLZ8B
-
Type: AirHub touch zone controller box (linear)
-
Zone capacity: Up to 8 zones
-
Control type: Linear expansion valve control
-
Damper voltage: 24V
-
Compatibility: FDYA(N), FDYUA(N) ducted indoor units with linear expansion valves
-
Required controllers: BRCMTZCB main unit and/or BRCSTZCB sub unit(s)
-
Required dampers: 24V motorized zone dampers (one per zone)
-
Installation: Professional installation required
-
Applications: Large multi-zone residential and commercial ducted systems with linear control
