Daikin BRC24Z4B Zone Controller Box
Power your multi-zone climate control system with the Daikin BRC24Z4B zone controller box. This control hub manages up to 4 zones with 24V damper motors, working with compatible Daikin controllers to deliver sophisticated zone management for your Daikin ducted air conditioning system.
Key Features
-
4-zone capacity – Controls up to 4 independent zones
-
24V damper motor control – Compatible with 24V motorized zone dampers
-
Central control hub – Manages zone dampers and system coordination
-
Compatible models – Designed for compatible Daikin ducted units
-
Automated zone management – Opens and closes dampers based on controller commands
-
Professional installation – Designed for integration by qualified technicians
-
Reliable operation – Built for long-term performance and stability
-
Genuine Daikin accessory – Engineered specifically for Daikin ducted systems
System Configuration
Important: The BRC24Z4B is the control box/hub for zone control systems using 24V dampers. It requires:

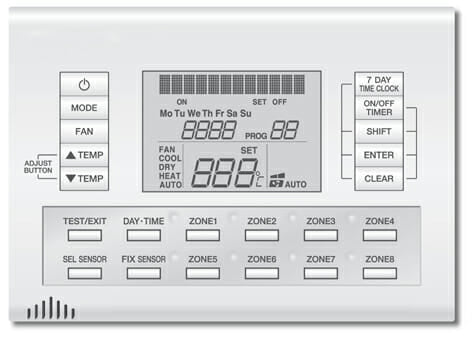

- Compatible Daikin controller(s) - Wall-mounted or wireless controllers
- 24V motorized zone dampers - One per zone (e.g., QZD624V, QZD824V, QZD1024V)
- Compatible Daikin ducted indoor unit
Why Choose the BRC24Z4B?
The BRC24Z4B controller box is the essential brain behind your multi-zone system using 24V dampers. It manages the communication between your controllers and zone dampers, ensuring precise control over each zone. Perfect for residential homes or small commercial installations requiring up to 4 independent zones, this control box enables energy-efficient climate management by directing airflow only where needed.
Ideal for new installations or upgrades to multi-zone control on compatible Daikin ducted systems. The 24V damper motor control ensures reliable operation with standard Daikin zone dampers, while integration with compatible controllers provides comprehensive zone management. When a zone is turned off, the damper closes to prevent conditioned air from being wasted in unoccupied spaces, significantly reducing energy consumption and running costs.
Australian Manufacturer's Warranty – All units come with full warranty coverage for complete peace of mind. Brand new, genuine Daikin product sourced from Australian stock.
Specifications
-
Model: BRC24Z4B
-
Type: Zone controller box
-
Zone capacity: Up to 4 zones
-
Damper voltage: 24V
-
Compatibility: Compatible Daikin ducted indoor units
-
Required controllers: Compatible Daikin wall-mounted or wireless controllers
-
Required dampers: 24V motorized zone dampers (one per zone)
-
Installation: Professional installation required
-
Applications: Multi-zone residential and small commercial ducted systems
